A Comprehensive Survey on Heart Disease Prediction Using Machine Intelligence
Santhosh Gupta Dogiparthi1*, Jayanthi K1 and Ajith Ananthakrishna Pillai22Department of Cardiology, JIPMER, Puducherry, India
Santhosh Gupta Dogiparthi, Department of ECE, Pondicherry Engineering College, Puducherry, India, Email: guptaucen@gmail.com
Received: 02-Jun-2021 Accepted Date: Jul 23, 2021 ; Published: 30-Jul-2021, DOI: O
Abstract
Objectives: The latest statistics of the World Health Organization anticipated that cardiovascular diseases including Coronary Heart Disease, Heart attack, vascular disease as the biggest pandemic to the world due to which one-third of the world population would die. With the emerging AI trends, applying an optimal machine learning model to target early detection and accurate prediction of heart disease is indispensable to bring down the mortality rates and to treat cardiac patients with the best clinical decision support. This stems from the motivation of this paper. This paper presents a comprehensive survey on heart disease prediction models derived and validated out of popular heart disease datasets like the Cleveland dataset, Z-Alizadeh Sani dataset. Methods: This survey was performed using the articles extricated from the Google Scholar, Scopus, Web of Science, Research Gate, and PubMed search engines between 2005 to 2020. The main keywords for the search were Heart Disease, Prediction, Coronary disease, Healthcare, Heart datasets, and Machine Learning. Results: This review explores the shortcomings of various approaches used for the prediction of heart diseases. It outlines the pros and cons of different research methodologies along with the validation parameters of each reviewed publication. Conclusion: Machine intelligence can serve as a genuine alternative diagnostic method for prediction, which will, in turn, keep the patients well aware of their illness state. Despite the researcher’s efforts, still uncertainty exists towards the standardization of prediction models which demands further exploration of optimal prediction models.
Keywords
Heart diseases, Machine learning, Deep learning, Health care, Heart disease dataset
Introduction
Heart Disease/Disorders (HD) have been recognized as one of the convoluted and fatal human illnesses in the world. Due to this disease, the heart functions abnormally leading to blocked blood vessels and get affected by angina, heart attack, and stroke. The most common types of heart diseases are Coronary Vascular Disease (CVD), Coronary Artery Disease (CAD), Congestive Heart Failure (CHF), and Abnormal Heart Rhythms. There are many challenges in predicting such HD at the early stages due to the involvement of several conventional risk factors like age, sex, hypertension, high cholesterol, abnormal pulse, and many other factors [1]. Despite wide diversity in the existence of cardiovascular risk factors across different sectors of society, CVD has been noticed to be one of the major causes of death all over India including economically backward states and rural areas. The global statistics also showed that the premature mortality in terms of years of life lost because of CVD climbs to 37 million (2010) from 23.2 million (1990) with an incremental rise of 59 % every year, which serves as the prime motivation of this paper.
The need for heart disease diagnosis has compelled towards invention few invasive clinical techniques like angiogram, which in spite of being expensive also induces some side effects for the diagnosed patients. This has motivated several researchers to use data mining techniques to diagnose CVD safely.
Machine Intelligence is a type of intelligence exhibited by machines to interconnect with the physical world [2]. Machine learning and deep learning technologies are two subsets of AI, which are likely to be used as the model to predict and ascertain the data. Both these technologies are very powerful and worthy for medical data analytics. Application of different types of machine intelligence paradigms is an ideal approach for heart disease diagnosis but as well serves as an aid for prediction, illness monitoring, and its other related clinical management aspects [3,4].
The related works of machine/deep learning in the medical field related to heart disease predictions have been explored elaborately in forthcoming sections and the generalized framework opted by most of the researchers for the prediction of heart disorders is shown in Figure 1. A prelude on the heart disease datasets commonly used by the researchers is presented in the subsequent section.

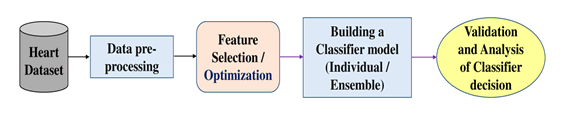

Figure 1. Generalized heart disease prediction framework
This article provides the benefits and shortcomings of the reviewed publications in the results section and highlights the salient points in the discussion section.
Heart Disease Datasets
This section provides an overview of datasets commonly used in the reviewed publications.
The most popular dataset used by the researchers is the Cleveland heart disease dataset obtained from the online repository of the University of California, Irvine (UCI) for machine learning. It is comprised of 303 samples with 6 samples having missing values. The data, in its original form, have 76 features but all the published work is likely to refer to 13 features out of them and the other feature outlines the effect of the disease. The salient features with their valid ranges are presented in Table 1.
| S.No. | Attribute | Description | Range |
|---|---|---|---|
| 1 | Age | Age of the individual | 29-77 |
| 2 | Sex | Sex | M, F |
| 3 | CP | Chest Pain type | 1-typical angina |
| 2-atypical angina | |||
| 3-Non-Anginal Pain | |||
| 4-Asymptomatic | |||
| 4 | restbp | Resting Blood Pressure | 94-200 |
| 5 | serchol | Serum Cholestoral in mg/dl | 126-564 |
| 6 | fbs | Fasting blood sugar > 120 | Yes, No |
| 7 | restecg | Resting Electrocardiographic | 0, 1, 2 |
| 8 | mhr | Maximum Heart rate achieved | 71-202 |
| 9 | exang | Exercise Induced Angina | Yes, No |
| 10 | oldpeak | ST depression Induced by Exercise relative to Rest | 0-6.2 |
| 11 | slope | Slope of the Peak Exercise ST Segment | 1, 2, 3 |
| 12 | vca | Number of Major Vessels colored by Fluoroscopy | 0, 1, 2, 3 |
| 13 | thal | Thallium Scan | 3-Normal |
| 6-Fixed Defect | |||
| 7-Reversible Defect | |||
| 14 | num | Diagnosis of heart disease | 0: <50% diameter narrowing |
| 1: >50% diameter narrowing |
Another most prevalent dataset used by the researchers for the prediction process is the Z-Alizadeh Sani dataset that includes 303 patients’ data with 55 input variables and a class label variable of each patient. The class label variable is comprised of four groups i.e., normal, LAD, LCX, and RCA which all come into the category of coronary heart disease. This dataset was mainly assembled for the diagnosis of CAD. The features, along with their valid ranges are introduced inAnother most prevalent dataset used by the researchers for the prediction process is the Z-Alizadeh Sani dataset that includes 303 patients’ data with 55 input variables and a class label variable of each patient. The class label variable is comprised of four groups i.e., normal, LAD, LCX, and RCA which all come into the category of coronary heart disease. This dataset was mainly assembled for the diagnosis of CAD. The features, along with their valid ranges are introduced in Table 2.
| Feature Type | Feature Name | Range |
|---|---|---|
| Demographic | Age | 30-86 |
| Weight | 48-120 | |
| Sex | Male, Female | |
| BMI (Body Mass Index Kg/m2) | 18-41 | |
| DM (Diabetes Mellitus) | Yes, No | |
| HTN (Hypertension) | Yes, No | |
| Current Smoker | Yes, No | |
| Ex-Smoker | Yes, No | |
| FH (Family History) | Yes, No | |
| Obesity | Yes if MBI>25, No otherwise | |
| CRF (Chronic Renal Failure) | Yes, No | |
| CVA (Cerebrovascular Accident) | Yes, No | |
| Airway Disease | Yes, No | |
| Thyroid Disease | Yes, No | |
| CHF (Congestive Heart Failure) | Yes, No | |
| DLP (Dyslipidemia) | Yes, No | |
| Symptom and Examination | BP (Blood Pressure: mmHg) | 90-190 |
| PR (Pulse rate: ppm) | 50-110 | |
| Edema | Yes, No | |
| Weak Peripheral Pulse | Yes, No | |
| Lung Rales | Yes, No | |
| Systolic Manner | Yes, No | |
| Diastolic Manner | Yes, No | |
| Typical Chest Pain | Yes, No | |
| Dyspnea | Yes, No | |
| Function Class | 1, 2, 3, 4 | |
| Atypical | Yes, No | |
| Nonanginal Chest Pain | Yes, No | |
| Exertional Chest Pain | Yes, No | |
| Low Th Ang (Threshold Angina) | Yes, No | |
| ECG | Rhythm | Sin, AF |
| Q wave | Yes, No | |
| ST-Elevation | Yes, No | |
| ST Depression | Yes, No | |
| T inversion | Yes, No | |
| LVH (Left Ventricular Hypertrophy) | Yes, No | |
| Poor R Progression | Yes, No | |
| Laboratory and Echo | FBS (Fasting Blood Sugar: mg/dl) | 62-400 |
| Cr (Creatine: mg/dl) | 0.5-2.2 | |
| TG (Triglyceride: mg/dl) | 37-1050 | |
| LDL (Low Density Lipoprotein: mg/dl) | 18-232 | |
| HDL (High Density Lipoprotein: mg/dl) | 15-111 | |
| BUN (Blood Urea Nitrogen: mg/dl) | 6-52 | |
| ESR (Erythrocyte Sedimentation rate: mm/h) | 1-90 | |
| HB (Haemoglobin: g/dl) | 8.9-17.6 | |
| K (Potassium: mEq/lit) | 3.0-6.6 | |
| Na (Sodium: mEq/lit) | 128-156 | |
| WBC (White Blood Cells: cells/ml) | 3700-18000 | |
| Lymph (Lymphocyte) (%) | Jul-60 | |
| Neut (Neutrophil) (%) | 32-89 | |
| PLT (Platelet: 1000/ml) | 25-742 | |
| EF (Ejection Fraction) (%) | 15-60 | |
| Region with RWMA (Regional Wall Motion Abnormality) | 0, 1, 2, 3, 4 | |
| VHD (Valvular Heart Disease) | Normal, Mild, Moderate, Severe |
The other datasets that are used by the researchers in the prediction process are StatLog Heart, Hungarian, Long Beach VA, and Kaggle Framingham dataset. StatLog dataset consists of 270 samples and each sample has 13 features similar to Cleveland as presented in Table 1.
The other two datasets of Hungarian and Long Beach VA datasets are obtained from the UCI repository where each dataset consists of 274 samples with each of 14 features like the Cleveland dataset presented in Table 1. In the Kaggle Framingham dataset, a large amount of data is available with samples of 4240 patients comprising of 16 features that incorporate behavioral, demographic, and medical risk factors.
Results
In recent years, there have been ample investigations by several researchers on heart disease predictions using the above-mentioned available datasets.
In the year of 1979, GA Diamond, JS Forrester integrated different results obtained from tests like stress electrocardiography, cardiokymography, thallium scintigraphy, and cardiac fluoroscopy into a diagnostic conclusion about the probability of acquiring disease in a given patient using Bayes’ Theorem [5]. Later the heart disease approaches have taken a new dimension towards estimation of the CHD using risk factor categories with the help of regression equations and logistic methods by WF Wilson, et al. [6].
In the later stages, different machine learning and deep learning algorithms are developed by several researchers to predict cardiovascular disease on the datasets available in the UCI repository.
In this paper, some of the publications related to heart disease predictions have been reviewed.
The comparative analysis of several reviewed works related to heart disease prediction is presented in Table 3.
| Ref. | Year | Classifiers/methods | Dataset Used | No. of Selected attributes | Inferences | |
|---|---|---|---|---|---|---|
| Benefits | Drawbacks | |||||
| [7] | 2007 | Feed Forward back propagation network | Not Specific | 13 | Unlabelled data fed for obtaining the classification accurately. 100% accuracy achieved. |
Less size of data (78 records) |
| [8] | 2007 | TAN, STAN, C4.5, CMAR and SVM | Not Specific | 8 | SVM showed the best accuracy of 90.9% among all. | Less size of data (193 records) |
| [9] | 2009 | Neural networks using LM, SCG, and CGP algorithms | Cleveland | 13 | Classification accuracy is 89.01%. Specificity is 95.91%. |
No other performance metric is evaluated to standardize the results |
| [10] | 2010 | NB, DL, KNN | Kaggle Framingham | 14 | Huge dataset (4240 instances) Naïve Bayes performed well compared with others and achieved an accuracy of 52.33%. |
Obtained accuracy is very less (52.33%) compared to all. |
| [11] | 2013 | Backpropagation network | Cleveland | 13 | Obtained accuracy is 92% at the 10th run time of the algorithm with different seed numbers. | Less size of training (116 records) and testing data (50 records) |
| [12] | 2014 | NB, DT-GI, SVM | Cleveland | 13 | The accuracy of the majority voting based ensemble is 81.82% Specificity is 92.86% |
The type of feature selection and no. of attributes selected for the ensemble process are not mentioned. |
| [13] | 2017 | Multiple Feature Selection with an ensemble approach | Z-Alizadeh Sani | 34 | Obtained accuracy is 93.70 ± 0.48 %. F1-score (95.53%) and Recall (97.63%) provide the best results. |
Processing time is high. |
| [14] | 2017 | Bagged Tree, Adaboost, and RF | Statlog | 7 | Feature selection technique is utilized Bagged tree with PSO provides a classification accuracy of 100%. Recall and specificity are 100% |
The size of the dataset is less. |
| [15] | 2017 | An adaptive weighted fuzzy system using GA+MDMS-PSO | Cleveland, Hungarian, and Switzerland | 7 | Three different statistical methods are used to identify the risk level factors Experiments were carried out on different datasets and achieved accuracies of 92.31% for Cleveland, 95.56 % for Hungary, 89.47% for Switzerland, 91.8% for Long Beach, and 92.68% for Heart datasets. |
The suggested model gives preferable results for one statistical method. |
| [16] | 2018 | LR, KNN, ANN, SVM, NB, DT | Cleveland | 6 | Three different feature selection algorithms are used and compared with the classifiers. The best accuracy is 89% with LR and Relief algorithm. |
Despite using several metrics the best algorithm is varied for all metrics. |
| [17] | 2018 | KNN, RF, SVM, NB & ANN | Statlog | 7 | FCBF feature selection method is used besides two optimization approaches namely PSO and ACO. Accomplished with an accuracy of 99.65% using KNN |
Each algorithm worked worse in some situations. |
| [18] | 2019 | NB, GLM, LR, DL, DT, RF, GBT & SVM | Cleveland | 13 (8 Subsets) | The hybrid algorithm is implemented with RF and LM. Achieved the best accuracy of 88.47% |
A single dataset is used for the entire process and no comparisons are made with other datasets. |
| [19] | 2019 | NuSVM, LinSVM and SVC | Z-Alizadeh Sani | 29 | Two-level optimization is preferred using GA and PSO Results are given that the highest accuracy is obtained for nuSVM (93.08%). |
No significance test is conducted for the standardization of the proposed approach. |
| [20] | 2019 | NB, BN, RF and MLP | Statlog | 11 (6 Subsets) | The maximum increase of 7% accuracy is achieved by the majority vote ensemble. The computational time for ensemble techniques is determined. Experiments are done and achieved an accuracy of 85.48% by an ensemble of BN, NB, RF, and MP. |
The total complexity is not determined. |
| [21] | 2019 | χ2-model+Deep Neural Network | Cleveland | 11 | The system was evaluated using 6 different performance metrics Comparisons were made between conventional neural networks (ANN, DNN) and proposed neural networks (χ2-ANN and χ2-DNN Under-fitting and overfitting problems are resolved. Achieved a testing accuracy of 93.33% |
A single dataset with small sample size is used to test the system. |
| [22] | 2019 | Random Search+Random Forest | Cleveland | 7 | Reduces the time complexity as the number of features is reduced. Achieved a testing accuracy of 93.33% The overfitting problem is resolved |
A single dataset with small sample size is used to test the system. |
| [23] | 2019 | χ2-model+Gaussian NB | Cleveland | 9 | Six evaluation metrics are used for the Cleveland dataset. Achieved a testing accuracy of 93.33% |
The age factor is excluded from the analysis. |
| [24] | 2020 | BiLSTM – CRF | Cleveland | - | Analyzed the data in both guiding ways and provide a linear relationship between attributes. Achieved a good classification accuracy of 90.04% for the Cleveland dataset. The proposed method is tested on 4 different datasets. |
No. of attributes selected for the prediction is not clear. |
| [25] | 2020 | CHI-PCA with Random Forest | Cleveland, Hungarian and Cleveland-Hungarian | 13 | Attained an accuracy of 98.7% for Cleveland, 99.0% for Hungarian, and 99.4% for CH datasets. Both feature selection and feature extraction are implemented. |
Analyzed the system with the same type of features available in different datasets. |
Discussion
There were several instances in the reported literature where the accuracies go steeper depending upon the selection of features and the type of machine learning algorithms used. Some of the models preferred a small sample size instead of the highly correlated factor like an age to obtain high accuracy [7]. Investigations that are reported in Das R., et al., Nabeel Al-Milli, and Bashir S., et al. offer high accuracy with total features due to the usage of the efficient and compact algorithm when compared with Rajkumar A., et al. [9-12]. Further careful examinations reveal that it provides less accuracy than Bashir S., et al. with the same type of ML algorithm due to its huge dataset [10,12]. This proves the fact that the sample size plays a key role in determining the predicted accuracies.
There are other approaches preferred by the researchers for improved prediction accuracy, i.e., the use of feature selection/optimization techniques where the less correlated features are removed. Further, various representations of Senthilkumar M., et al., Latha CBC., et al., Ali, Liaqat, et al., and Garate, et al. shows that the removal of one or more highly correlated and needed factors such as age, rest ECG, ST Depression, etc., for the identification of the disease leads to higher accuracy [18,20,23,25].
However, the involvement of feature selection in prediction models Yekkala I., et al., Haq, Amin Ul, et al., Khourdifi Y., et al., Abdar M., et al. Javeed A., et al., and Garate, et al. has not only resulted in the accuracy improvement but also get rid of the problems like greater computational costs and overfitting posed by irrelevant input features that involved in the learning process [14,16,17,19,22,25]. Apart from these, the techniques may pose designing issues and those can be confronted by the appropriate advanced predictive models in future research [26-29].
Conclusion
Machine intelligence can serve as a genuine alternative diagnostic method for prediction, which will, in turn, keep the patients well aware of their illness state.
This article presents a comprehensive study of heart prediction systems based on machine learning, ensemble, and deep learning approaches. From the reviewed literature, it is obvious that the Cleveland heart disease dataset that contains only 303 instances with 14 features is mostly used. This is mainly because of the tiny and restricted sample size. Any study that uses other data sources also concentrated on a single dataset with a limited number of features. Consequently, high accuracies obtained in the prediction models with the removal of irrelevant features or removal of highly correlated factors or by using feature selection/optimization techniques cannot be generalized, which is a major shortcoming.
Despite the researcher’s efforts, still uncertainty exists towards the standardization of prediction models. To get a more generalized classification and prediction accuracy, other multiple heart disease datasets from different sources with more features should be considered. An efficient predictive framework model which eliminates most of the shortcomings reported in this paper is the cardinal intent of our future research. Furthermore, real-time data should be analyzed on the working learning model to get it standardized and ensure its reliability with the clinical correlation and validation.
Declarations
Conflicts of Interest
The authors declared no potential conflicts of interest concerning the research, authorship, and/or publication of this article.
